Others

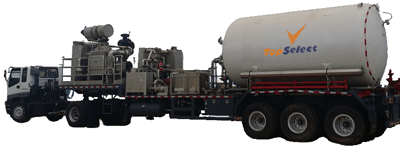

Liquid Nitrogen Pump 180K
Maximum N2 Displacement: 180,000 SCFH
Maximum Working Pressure: 10,000 psi
Maximum Output Power: 188 HP
Deck Engine: DDC S60 550 HP Explosion-proof engine
Plunger Pump: ACD 3-GUPD triplex pump
Maximum Working Pressure: 10,000 psi
Input power: 243.9 HP and Output power: 205 HP
Maximum stroke: 1.5 inch
Plunger diameter: 1.625 inch
N2 Tank capacity: 4000 gal
SPECIFICATION GUIDE
Name
Overall Dimensions
Capacity
Max. Working Pressure
Max. Proppant Output Capacity
Tank weight
Operating ambient temperature

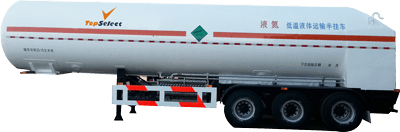

Liquid Nitrogen Tank
14 ×2.6 ×4 m
8751Gal
10,000psi
-
-
-
Proppant Transfer Truck
9.8 ×2.5 ×3.4 m
113bbl
-
10BPM
-
-
Acid & Water Tank
11.4 × 2.5 ×2.9 m
-
-
10BPM
11 Ton
-10˚C~50˚C
